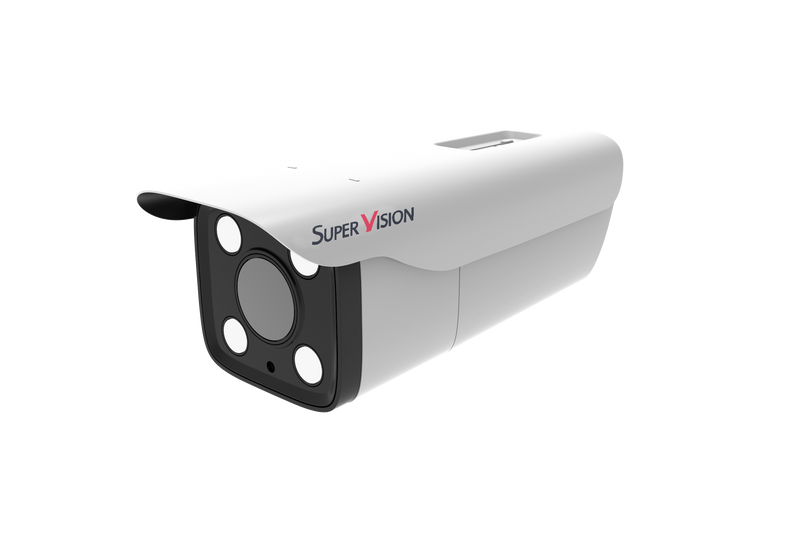

SmartEye E100-H1 Entry/Exit Lane Perception Camera (AI-RS-E100-H1)
Camera
Image Sensor
8MP 1/1.
8" Starlight CMOS
Max.
Resolution
3840 × 2160
Min.
Illumination
Color: <0.
002 lux | B&W: <0.
CE
FCC
IP67
RoHS
1-Year Warranty
12h Response
T/T & L/C
CE & FCC
1-Year Warranty
Camera
| Image Sensor | 8MP 1/1.8" Starlight CMOS |
|---|---|
| Max. Resolution | 3840 × 2160 |
| Min. Illumination | Color: <0.002 lux | B&W: <0.0002 lux |
| Day & Night | ICR + IR cut filter |
AI & Intelligence
| ALPR Accuracy | ≥99% |
|---|---|
| Detection Range | 2–8m (lane camera) |
| Vehicle Classification | 10+ types |
| Trigger Output | Relay output for barrier gate |
Illuminator
| Type | IR + White Light |
|---|---|
| Range | Up to 10m |
| Wavelength | 850nm IR |
Network
| Interface | 1 × RJ45 10/100 Mbps |
|---|---|
| Protocol | TCP/IP, RTSP, ONVIF, REST API |
| Power | PoE (802.3af) or 12V DC, max 15W |
General
| Operating Temperature | -30°C to +60°C |
|---|---|
| Protection | IP67 |
| Dimensions | 200mm × 80mm × 75mm |
| Certifications | CE, FCC, RoHS |
