Model: AITS

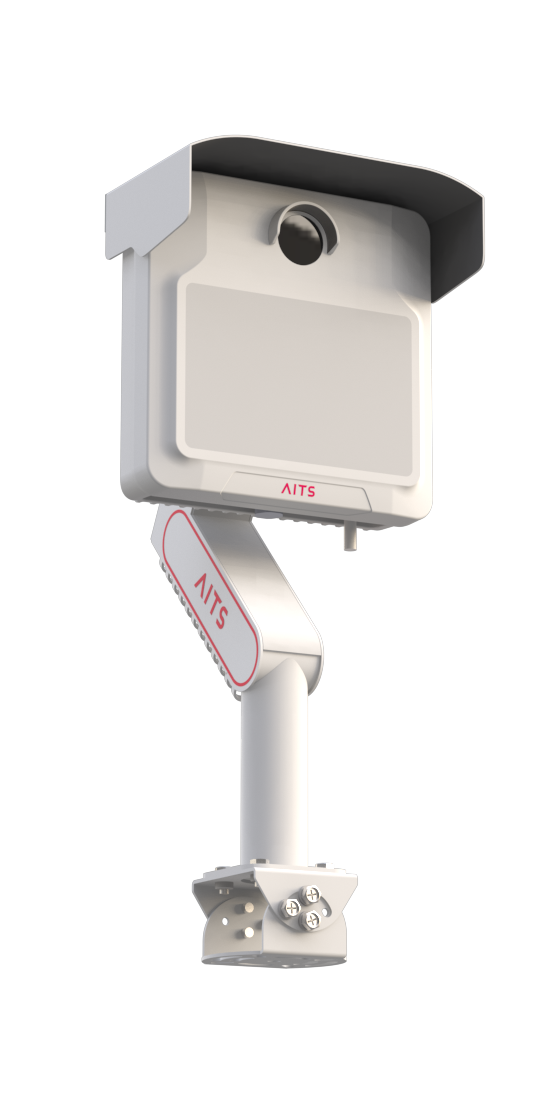

RadarVision AITS-SD-RV Monocular Radar-Vision Traffic Unit
Radar
Radar Type
77GHz millimeter-wave FMCW
Detection Range
Up to 200m
Max.
Vehicle Speed
200 km/h
Lane Coverage
Up to 4 lanes
Accuracy
Speed: ±2 km/h, Position: ±0.
5m
Camera
Image Sensor
8MP 1/1.
Resolution
3840 × 2160
Min.
CE
FCC
IP67
RoHS
1-Year Warranty
12h Response
T/T & L/C
CE & FCC
1-Year Warranty
Radar
| Radar Type | 77GHz millimeter-wave FMCW |
|---|---|
| Detection Range | Up to 200m |
| Max. Vehicle Speed | 200 km/h |
| Lane Coverage | Up to 4 lanes |
| Accuracy | Speed: ±2 km/h, Position: ±0.5m |
Camera
| Image Sensor | 8MP 1/1.8" CMOS |
|---|---|
| Max. Resolution | 3840 × 2160 |
| Min. Illumination | Color: <0.001 lux |
AI & Intelligence
| Vehicle Classification | 20+ types |
|---|---|
| ALPR | Yes, ≥99% at <120 km/h |
| Traffic Flow | Count, speed, density, headway |
| Algorithm | Radar-vision fusion AI |
Network
| Interface | 1 × RJ45 Gigabit |
|---|---|
| Protocol | TCP/IP, RTSP, REST API |
| Power | PoE+ (802.3at), max 30W |
General
| Operating Temperature | -40°C to +70°C |
|---|---|
| Protection | IP67 |
| Dimensions | 350mm × 200mm × 150mm |
| Weight | Approx. 4.5 kg |
| Certifications | CE, FCC, RoHS |
