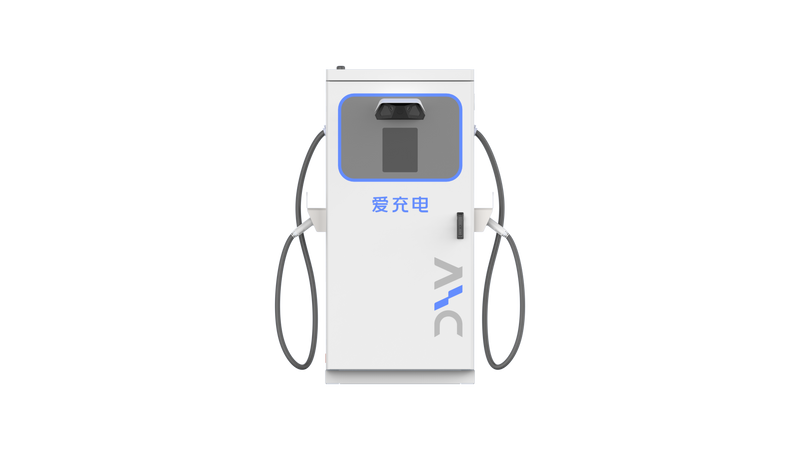

GreenGiant DC 120kW Fast EV Charging Station with Parking Management (SV-CSL-D-120-2)
Charging
Output Power
120kW (max), dual gun: 2 × 60kW
Output Voltage
200–1000V DC
Output Current
250A max per gun
Connector Type
CCS1, CCS2, CHAdeMO
Charging Standard
IEC 61851-23, CHAdeMO 1.
2
Smart Features
OCPP Version
OCPP 2.
1
Payment
RFID, QR code, credit card
Efficiency
≥95%
Remote Management
Cloud dashboard
General
Operating Temperature
-30°C to +50°C
Protection
IP55
Power Input
3-phase 400V AC, 50/60Hz
Dimensions
700mm × 400mm × 1800mm
Weight
Approx.
180 kg
Certifications
CE, FCC, RoHS, UL.
CE
FCC
IP67
RoHS
1-Year Warranty
12h Response
T/T & L/C
CE & FCC
1-Year Warranty
Charging
| Output Power | 120kW (max), dual gun: 2 × 60kW |
|---|---|
| Output Voltage | 200–1000V DC |
| Output Current | 250A max per gun |
| Connector Type | CCS1, CCS2, CHAdeMO |
| Charging Standard | IEC 61851-23, CHAdeMO 1.2 |
Smart Features
| OCPP Version | OCPP 2.0.1 |
|---|---|
| Payment | RFID, QR code, credit card |
| Efficiency | ≥95% |
| Remote Management | Cloud dashboard |
General
| Operating Temperature | -30°C to +50°C |
|---|---|
| Protection | IP55 |
| Power Input | 3-phase 400V AC, 50/60Hz |
| Dimensions | 700mm × 400mm × 1800mm |
| Weight | Approx. 180 kg |
| Certifications | CE, FCC, RoHS, UL |
