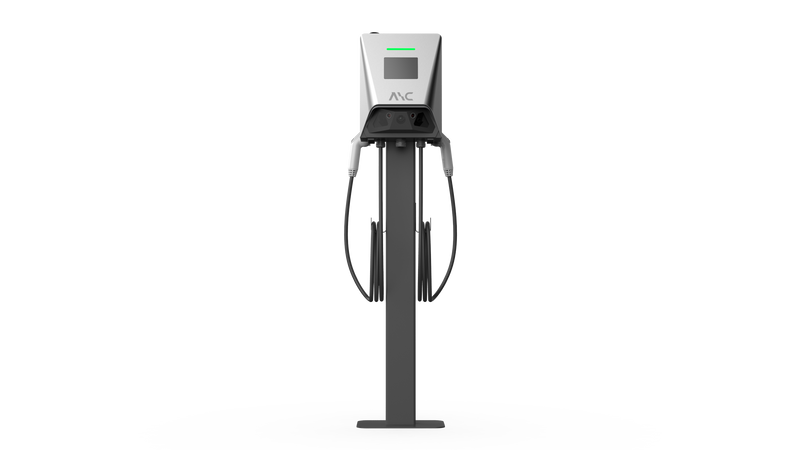

GreenGiant AC Smart EV Charging Station with Parking Management (SV-CSL-A-014-2)
Charging
Output Power
14kW (single phase) / 22kW (three phase)
Output Voltage
230V AC (±10%)
Output Current
32A max
Connector Type
Type 2 (IEC 62196-2)
Charging Standard
IEC 61851-1, SAE J1772
Smart Features
OCPP Version
OCPP 1.
6J
Payment
RFID, QR code, app
Load Management
Dynamic load balancing
Remote Management
Cloud dashboard
Integration
Parking Camera
Integrated 5MP ALPR camera
API
REST API for PMS integration
Protocol
MQTT, HTTP/HTTPS
General
Operating Temperature
-30°C to +50°C
Protection
IP54
Power Input
230V AC / 400V AC, 50/60Hz
Dimensions
400mm × 250mm × 150mm
Certifications
CE, FCC, RoHS, UL.
CE
FCC
IP67
RoHS
1-Year Warranty
12h Response
T/T & L/C
CE & FCC
1-Year Warranty
Charging
| Output Power | 14kW (single phase) / 22kW (three phase) |
|---|---|
| Output Voltage | 230V AC (±10%) |
| Output Current | 32A max |
| Connector Type | Type 2 (IEC 62196-2) |
| Charging Standard | IEC 61851-1, SAE J1772 |
Smart Features
| OCPP Version | OCPP 1.6J |
|---|---|
| Payment | RFID, QR code, app |
| Load Management | Dynamic load balancing |
| Remote Management | Cloud dashboard |
Integration
| Parking Camera | Integrated 5MP ALPR camera |
|---|---|
| API | REST API for PMS integration |
| Protocol | MQTT, HTTP/HTTPS |
General
| Operating Temperature | -30°C to +50°C |
|---|---|
| Protection | IP54 |
| Power Input | 230V AC / 400V AC, 50/60Hz |
| Dimensions | 400mm × 250mm × 150mm |
| Certifications | CE, FCC, RoHS, UL |
