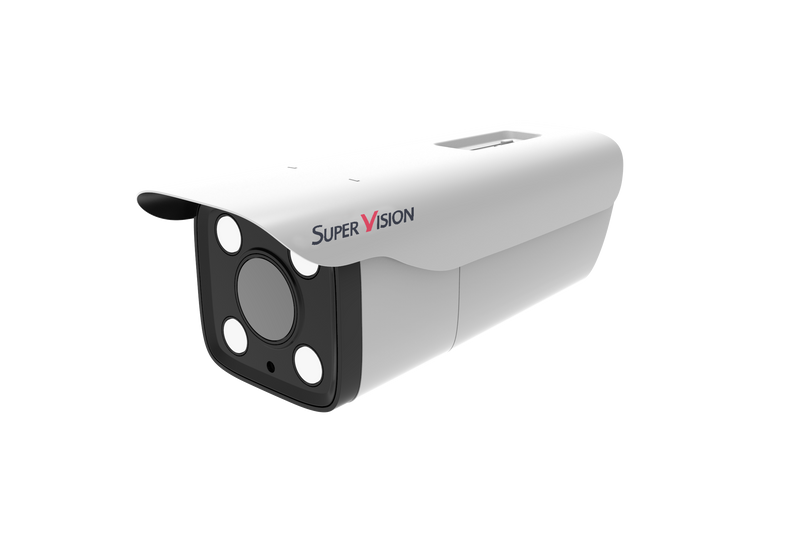

MicroCheckpoint E100-C1 Mini ALPR Traffic Camera (AI-RS-E100-C1)
Camera
Image Sensor
5MP 1/2.
Resolution
2592 × 1944
Min.
Illumination
Color: <0.
01 lux | B&W: <0.
CE
FCC
IP67
RoHS
1-Year Warranty
12h Response
T/T & L/C
CE & FCC
1-Year Warranty
Camera
| Image Sensor | 5MP 1/2.7" CMOS |
|---|---|
| Max. Resolution | 2592 × 1944 |
| Min. Illumination | Color: <0.01 lux | B&W: <0.001 lux |
| Shutter Speed | 1/25s to 1/50,000s |
AI & Intelligence
| ALPR Accuracy | ≥99% |
|---|---|
| Max. Vehicle Speed | 120 km/h |
| Detection Range | 5–15m |
| Algorithm | Deep learning edge AI |
Network
| Interface | 1 × RJ45 10/100 Mbps |
|---|---|
| Protocol | TCP/IP, RTSP, ONVIF, REST API |
| Power | PoE (802.3af), max 12W |
General
| Operating Temperature | -40°C to +70°C |
|---|---|
| Protection | IP67 |
| Dimensions | 140mm × 60mm × 55mm |
| Weight | Approx. 0.6 kg |
| Certifications | CE, FCC, RoHS |
